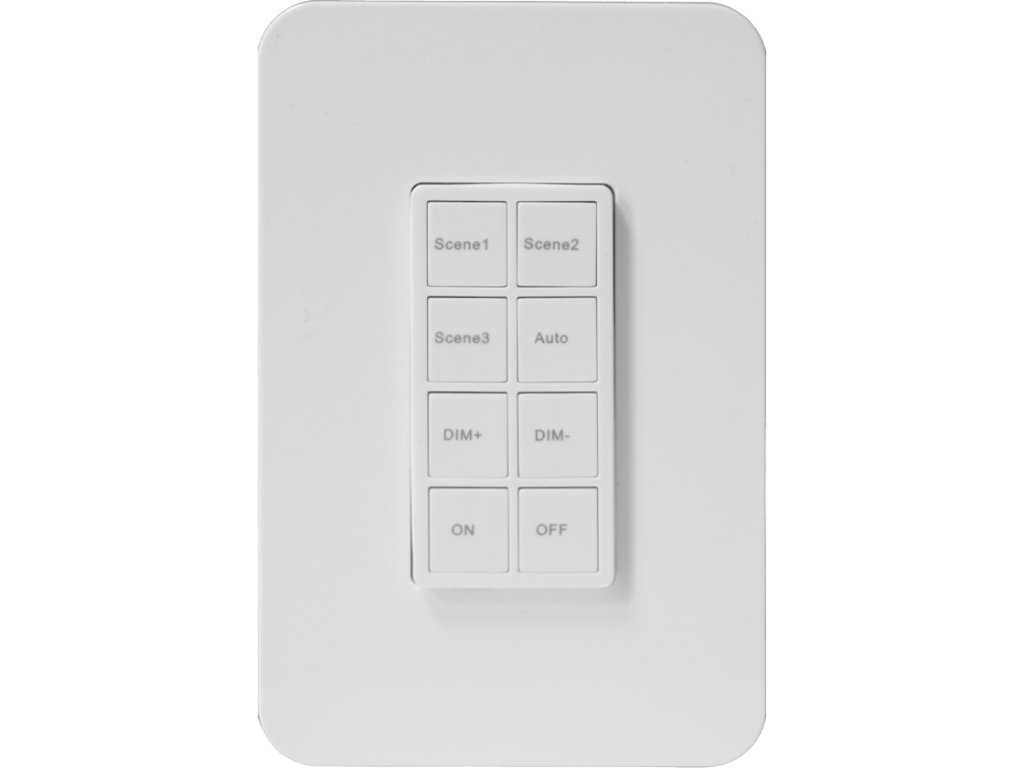

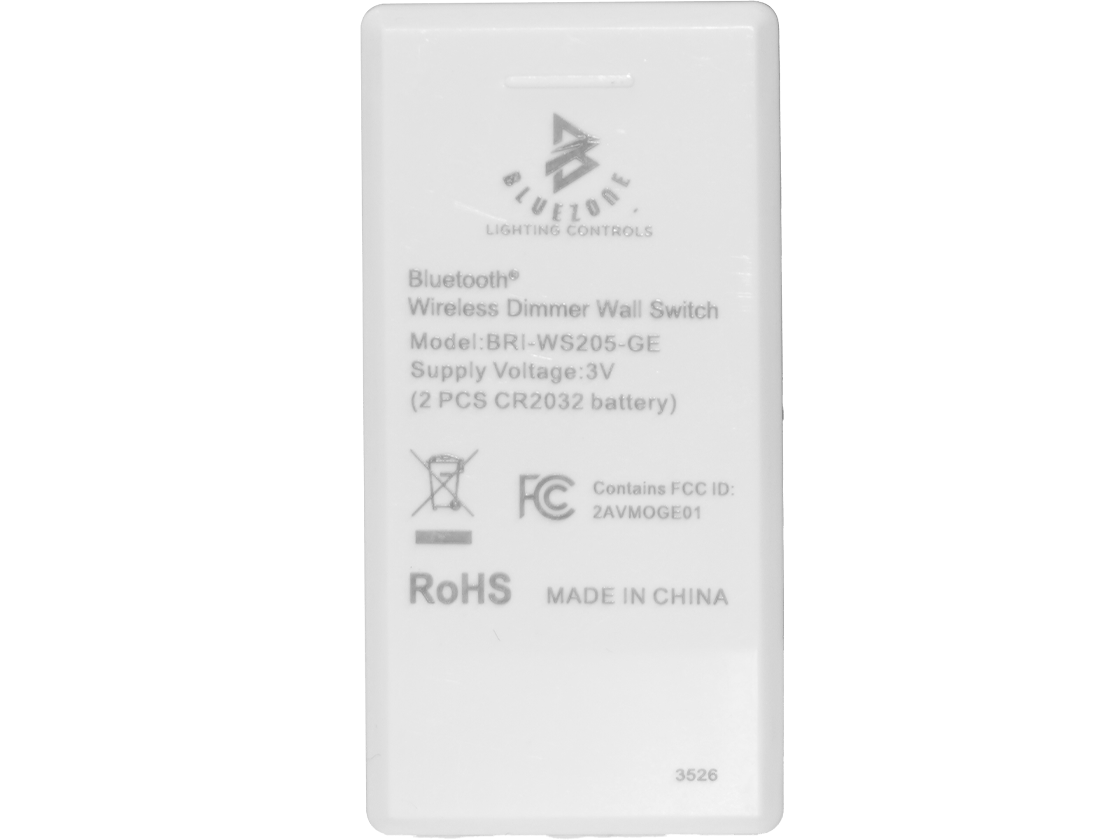

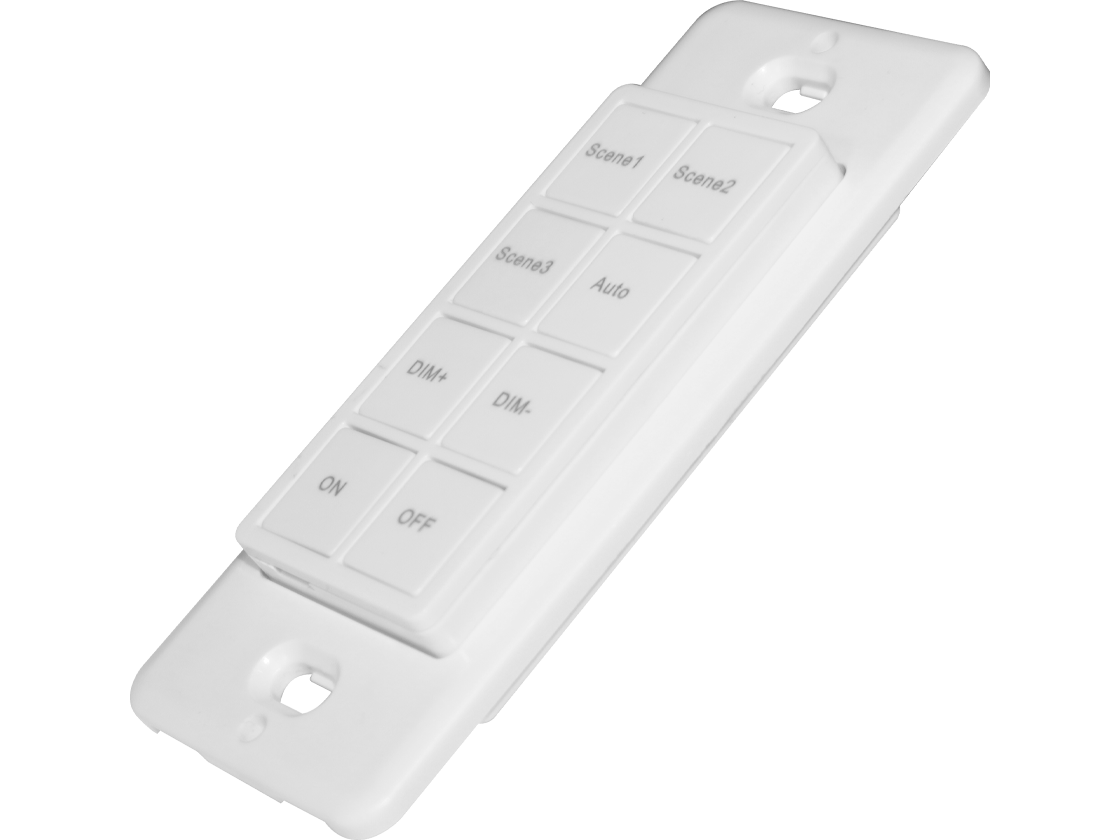

WIRELESS DIMMER WALL SWITCH BRI-WS205-GE
The white 8-button remote replaces existing wall switches to deliver enhanced lighting control, featuring 8 front-panel buttons for direct control of Bluezone connected devices and compatibility with the free Bluezone app for remote management via smartphone or tablet.
Specifications
Action
Eight push buttons; Up to four software-configurable scenes
Transmission Power
<0.2mW
Operating Temperature
-32°F~+131°F( 0°C~+55°C)
Power
2 x CR2032
Battery Life
5 years based on average usage
Max Fixtures Per Control
100
Interoperability
Bluezone Sensors and Gateways
IP Rating
IP20
Max Bluetooth Range
150ft (46m)
Radio Frequency
2400-2483.5 MHz
Mesh Range (node-to-node / commissioning)
100ft/50ft
Enclosure
Polycarbonate
Color / Finish
white
Weight
2.75 oz (78g)
Wireless Range
150 ft. (46 m) radius open range
Encryption
AES 128-bit
Warranty
5 years
Wireless Standards
IEEE 802.15.4
Mobile App
Bluezone App (IOS /Android)
Gateway Required
Optional
Documents & downloads
BlueZone-Spec-Sheet-BRI-WS205-GE-WIRELESS-DIMMER-WALL-SWITCH
PDF · 416 KB
Instruction-BRI-WS205-GE
PDF · 17 MB
