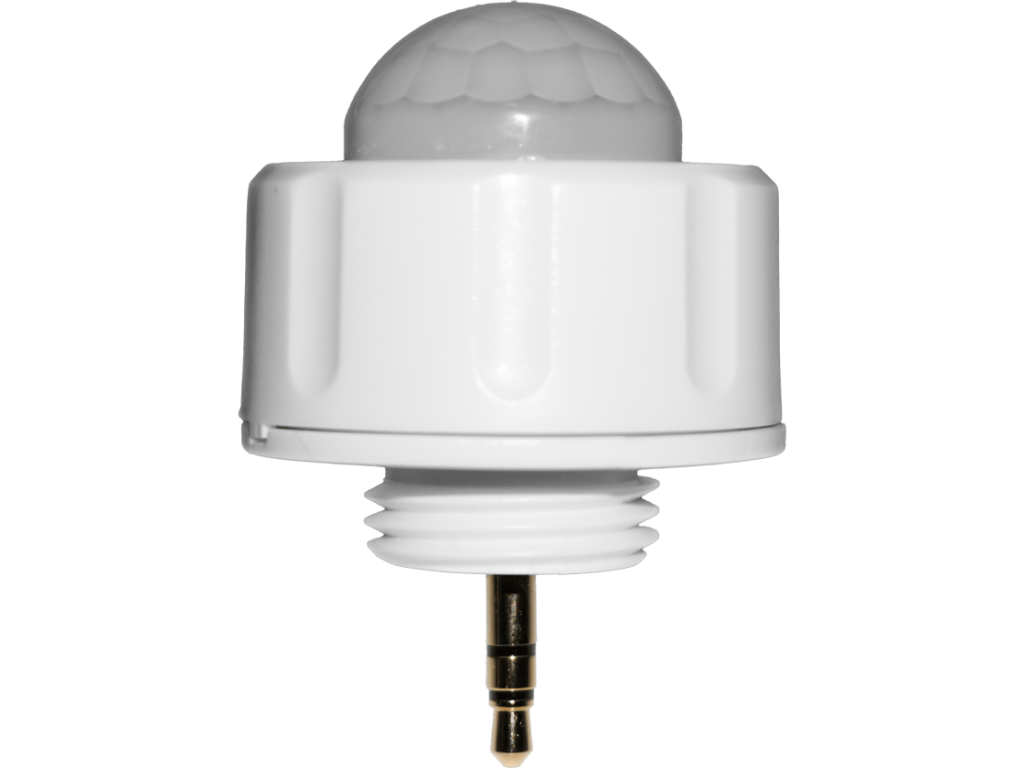

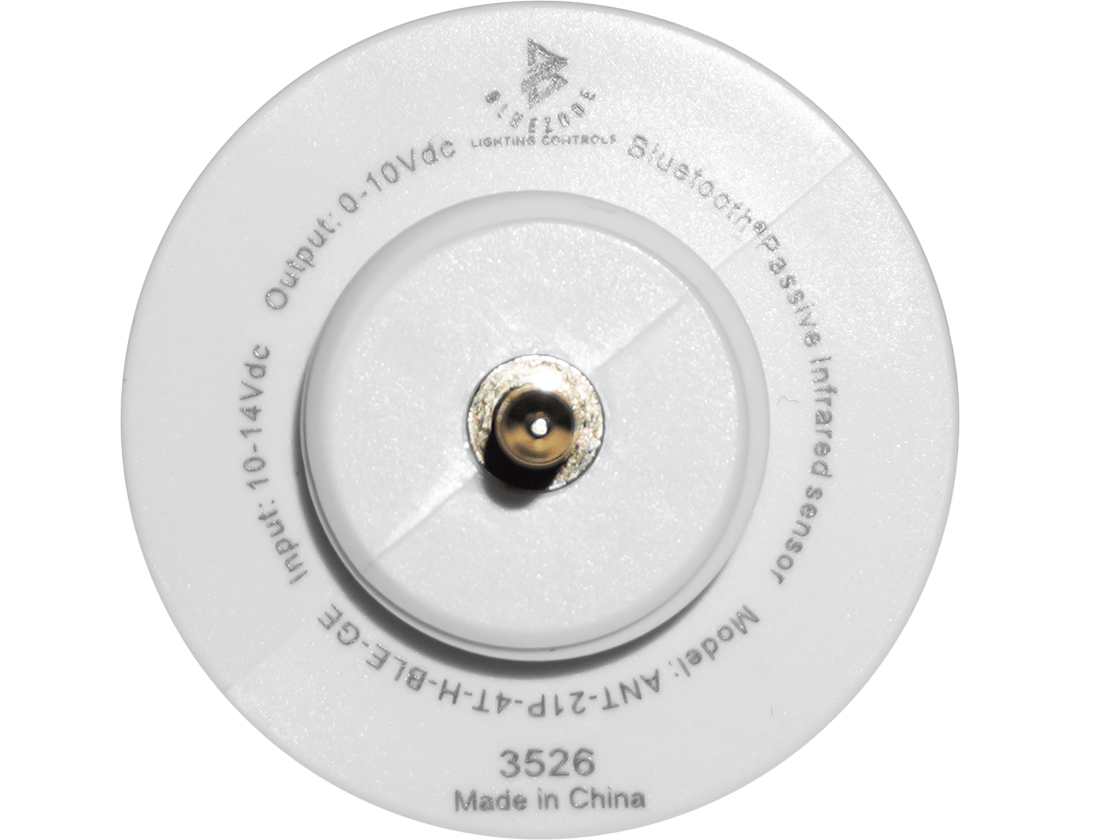

PASSIVE INFRARED SENSOR ANT-21P-4T-H-BLE-GE
The ANT-21P-4T-H-BLE-GE features a compact, low-profile design ideal for wall-mounted fixtures with limited space, using passive infrared (PIR) detector architecture for improved detection coverage in high bay applications; it utilizes a Bluetooth® low energy (BLE) mesh network, with dim levels and schedules easily configurable through the Bluezone app.
Specifications
Motion Sensor
Passive infrared sensor
Input Power
10-14VDC,max 50mA
Control Output
0-10V,max 25mA sinking current
HF System
N/A
Transmission Power
<0.2mW
Mounting Height
20ft (6m) Max.
Detection Angle
360°
Operating Temperature
-4°F~+140°F(-20°C~+60°C)
IP Rating
IP65
Max Bluetooth Range
164ft (50m)
Warranty
5 years
Color / Finish
White
Enclosure Material
Polycarbonate
Wireless Standard
Bluetooth SIG Mesh / BLE 5.0
Mesh Range (node-to-node / commissioning)
100ft/50ft
Encryption
AES 128-bit
Mobile App
Bluezone App (IOS /Android)
Gateway Required
Optional
Documents & downloads
BlueZone-Spec-Sheet-ANT-21P-4T-H-BLE-GE-BLUETOOTH-PIR-SENSOR
PDF · 376 KB
Instruction-ANT-21P-4T-H-BLE-GE
PDF · 613 KB
