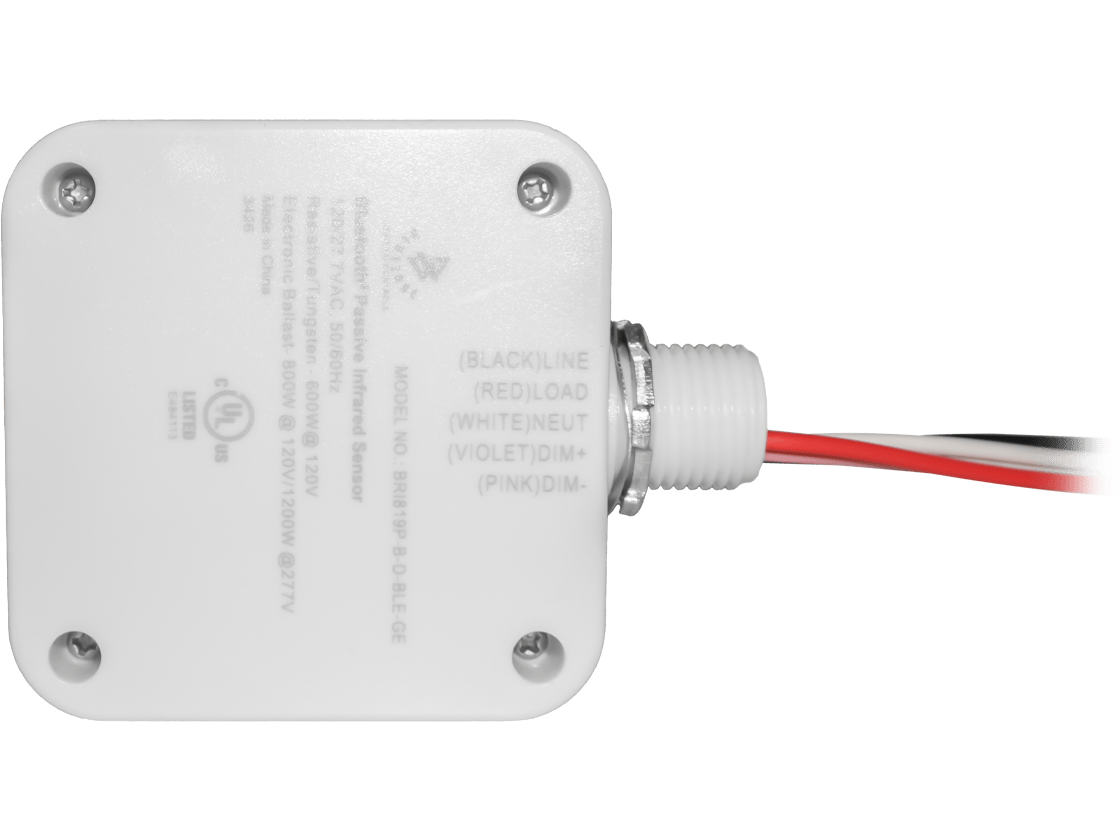

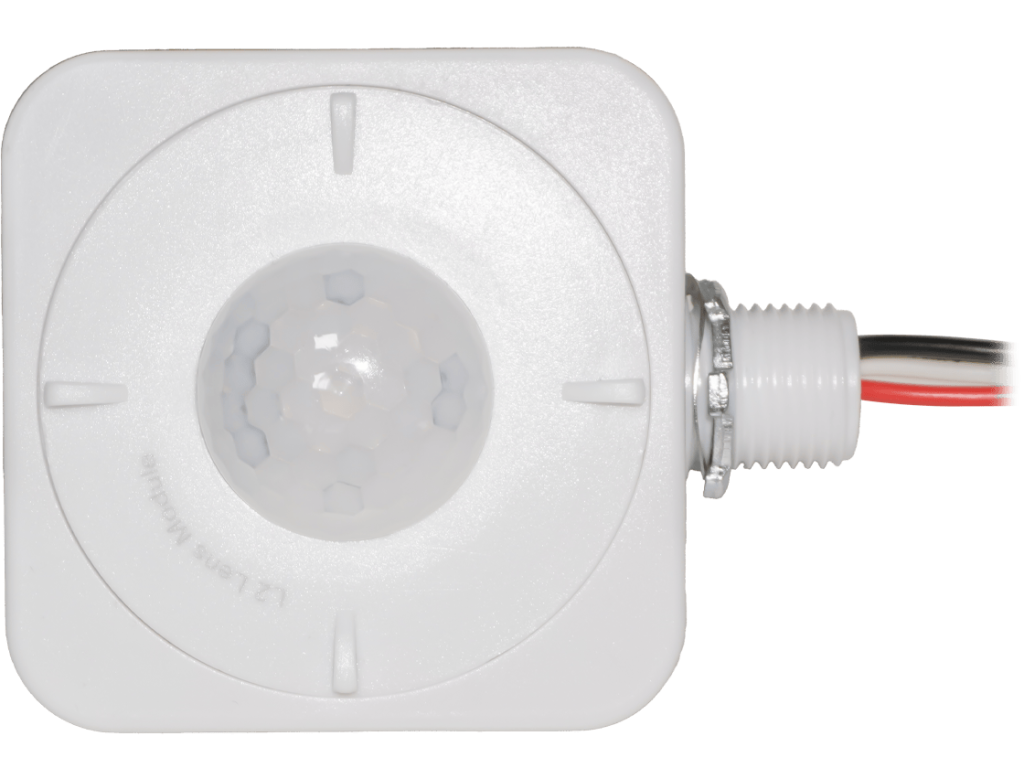

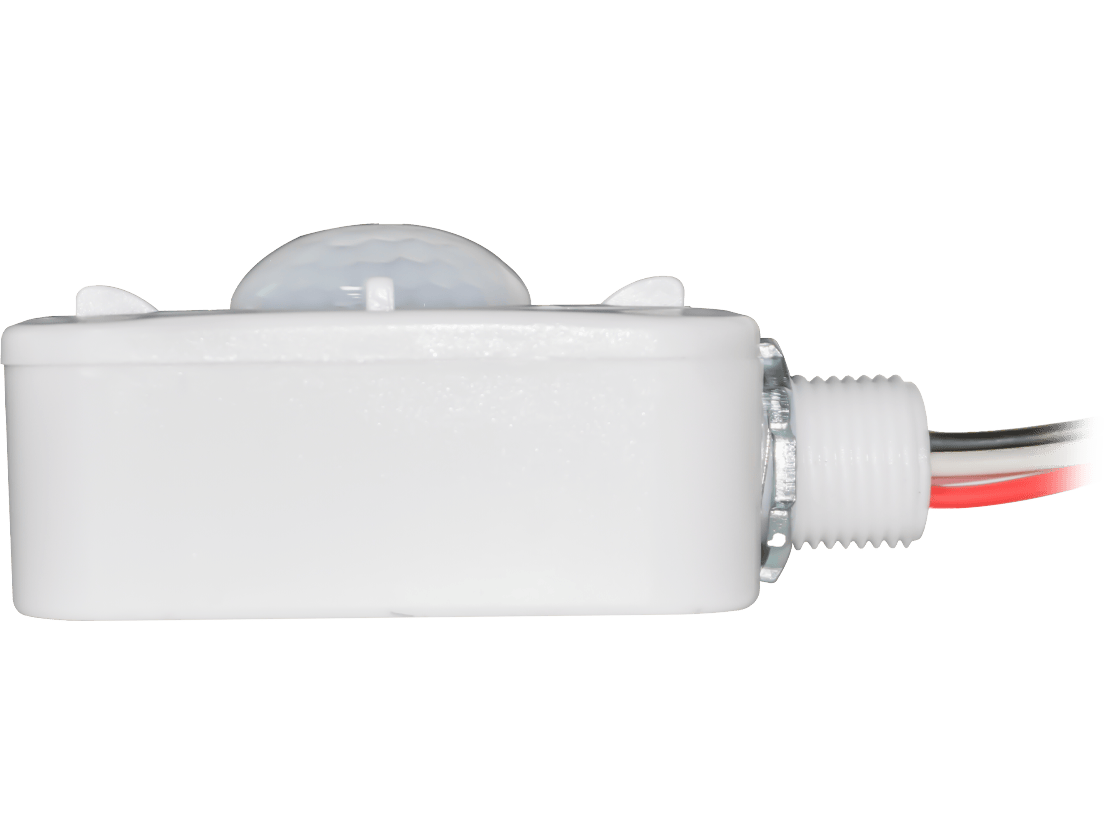

PASSIVE INFRARED SENSOR BRI819P-B-D-BLE-GE
The BRI819P-B-D-BLE-GE pairs PIR motion sensing with Bluetooth® connectivity, delivering both expanded detection coverage and convenient wireless control for high bay applications.
Specifications
Motion Sensor
Passive infrared sensor
Input Power
120/277 VAC 50/60 HZ
Control Output
0-10V, max 25mA sinking current
HF System
N/A
Transmission Power
<0.2mW
Mounting Height
L2 Lens 40ft
Detection Angle
360°
Operating Temperature
-40°F~+158°F(-40°C~+70°C)
IP Rating
IP20
Max Bluetooth Range
164ft (50m)
Warranty
5 years
Weight
4.23 oz (120g)
Color / Finish
White
Enclosure Material
Polycarbonate
Wireless Standard
Bluetooth SIG Mesh / BLE 5.0
Mesh Range (node-to-node / commissioning)
100ft/50ft
Encryption
AES 128-bit
Mobile App
Bluezone App (IOS /Android)
Gateway Required
Optional
Documents & downloads
BlueZone-Spec-Sheet-ANT-BRI819P-B-D-BLE-GE-BLUETOOTH-PIR-SENSOR
PDF · 546 KB
Instruction-BRI819P-B-D-BLE-GE
PDF · 1 MB
