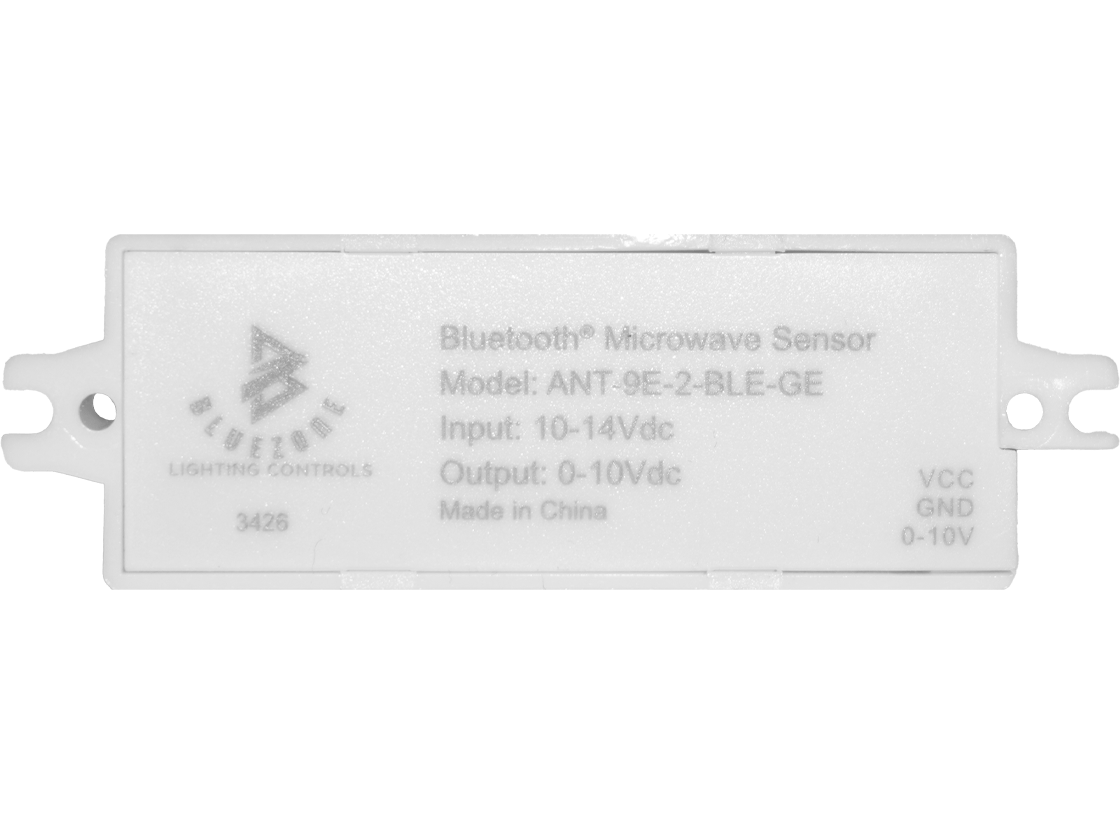

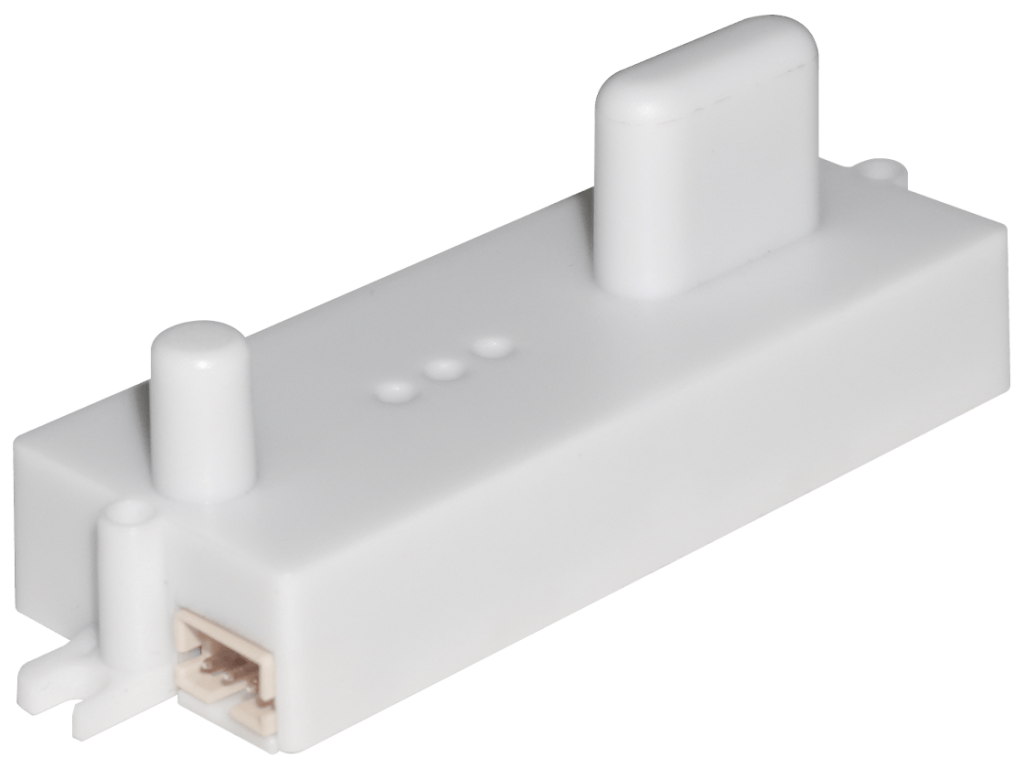

0-10V DIMMING MICROWAVE FIXTURE SENSOR ANT-9E-2-BLE-GE
The ANT-9E-2-BLE-GE uses microwave motion detector architecture to deliver improved detection coverage for low bay applications, and utilizes a Bluetooth® low energy (BLE) mesh network with dim levels and schedules easily configurable through the Bluezone app.
Specifications
Motion Sensor
Microwave sensor
Input Power
10-14VDC,>50mA
Control Output
0-10V,max 25mA sinking current
HF System
5.8GHz ± 75MHz
Transmission Power
<0.2mW
Mounting Height
16.4ft (5m) Max.
Detection Angle
360°
Operating Temperature
-40°F~+158°F(-40°C~+70°C)
IP Rating
IP20
Max Bluetooth Range
100ft (30m)
Warranty
5 years
Weight
0.494oz (14g)
Color / Finish
White
Enclosure Material
Polycarbonate
Wireless Standard
Bluetooth SIG Mesh / BLE 5.0
Mesh Range (node-to-node / commissioning)
100ft/50ft
Encryption
AES 128-bit
Mobile App
Bluezone App (IOS /Android)
Gateway Required
Optional
Documents & downloads
BlueZone-Spec-Sheet-ANT-9E-2-BLE-GE-BLUETOOTH-MICRO-SENSOR
PDF · 2 MB
Instruction-ANT-9E-2-BLE-GE
PDF · 5 MB
